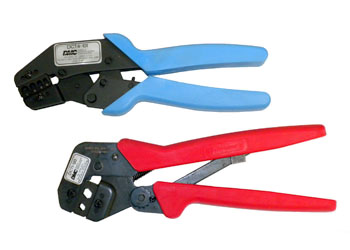

DCT4 工具系列模具 |
|
模具型号 |
介绍 |
|
DCT4-101 |
Insulated Spare Wire Caps
Comparable to AMP 58573-1 |
|
DCT4-102 |
R/B/Y Insulated Terminals & Splices
#22-18 AWG, #16-14 AWG, #12-10 AWG |
|
DCT4-104 |
R/B/Y Rostra Heat-N-Seal |
|
DCT4-105 |
Uninsulated Terminals |
|
DCT4-106 |
RF Connectors .178 / .128 hexes |
|
DCT4-107 |
RF Connectors .068 /.178 / .324 hexes |
|
DCT4-108 |
.068 / .213 / .255 hexes |
|
DCT4-109 |
.213 / .128 / .105 hexes |
|
DCT4-110 |
Trompeter CD3-2 with .324 / .255 / .068 / .042 hexes |
|
DCT4-111 |
Coaxial and Fire Bottle
Cap Indicator .128 hex |
|
DCT4-117 |
.255 / .213 / .178 /.128 hexes |
|
DCT4-118 |
.213 / .178 hexes |
|
DCT4-119 |
Insulated Terminals & Splices
#24-20 AWG, #22-18 AWG, AND #16-14 AWG w/ Locator |
|
DCT4-120 |
RG58/U, RG59/U, RG62/U .359/.255 hexes |
|
DCT4-121 |
.039 square / .195 hexes |
|
DCT4-122 |
Insulated Terminals & Splices
#24-20 AWG, #22-18 AWG AND #16-14 AWG |
|
DCT4-124 |
.068 / .128 / .178 hexes Comparable to Amphenol CTL-9 |
|
DCT4-128 |
.211 / .128 / .105 hexes Cannon CCT-DM Comparable to Die Y322 |
|
DCT4-129 |
Same configuration as M22520/37-1for M81824/1-X Splices
Tyco (Raychem) “Mini-Seal” Environmental Splices (26-20, 20-16, 16-12) |
|
DCT4-130 |
Sub-D Contact 20-24 / 24-28 |
|
DCT4-138 |
Coaxial Crimp Tool .264 / .161 hexes |
|
DCT4-139 |
.264 / .220 hexes |
|
DCT4-140 |
.433 / .402 hexes |
|
DCT4-141 |
B-Crimp Cond. & Ins. 16-22 AWG, 14-16 AWG, 10-12 AWG |
|
DCT4-142 |
with .142 / .112 / .079 hexes |
|
DCT4-144 |
Coaxial Crimp Tool .359 / .290 hexes |
|
DCT4-145 |
Coaxial Crimp Tool .454 hex |
|
DCT4-147 |
.429 / .100 / .068 hexes |
|
DCT4-148 |
.268 / .178 hexes, .057 diameter |
|
DCT4-149 |
Coaxial Cable ST212, ST214, BT2002, BT3002 .268 / .213 / .178 / .150 hexes |
|
DCT4-151 |
D-Subminiature 20-30 AWG |
|
DCT4-154 |
.028 / .047 SQ, .128 / .178 Hexes |
|
DCT4-155 |
.028 / .047 SQ, .15 / .268 Hexes |
|
DCT4-157 |
.211 / .252 / .068 hexes |
|
DCT4-158 |
.212 / .252 / .066 hexes |
|
DCT4-160 |
.041 gage for "B" crimp |
|
DCT4-161 |
.041 gage for "B" crimp |
|
DCT4-162 |
.042 gage for "B" crimp |
|
DCT4-163 |
.290 diameter cavity |
|
DCT4-166 |
.187 / .178 hexes, .042 SQ Comparable to Amphenol CTL-15 |
|
DCT4-167 |
.324 / .319 / .255 hexes, .042 SQ
Comparable to Amphenol CTL-14 |
|
DCT4-169 |
.324 / .255 / .068 hexes, .052 SQ
Comparable to Amphenol CTL-8 |
|
DCT4-170 |
.290 / .128 / .105 hexes |
|
DCT4-173 |
Rosenberger 88K20K-0S-3H3 |
|
DCT4-175 |
AMP Multimate III & VI |
|
DCT4-176 |
Comparable to DIE Y498 |
|
DCT4-178 |
“B” Crimp |
|
DCT4-179 |
“B” Crimp |
|
DCT4-180 |
Tyco AMPMODU Series Type IV, IV1/2 & V Contacts
Comparable to AMP 90340 |
|
DCT4-181D |
Molex 734154550 (1 of 2) |
|
DCT4-182D |
Molex 734154550 (2 of 2) |
|
DCT4-183 |
.339 Hex |
|
DCT4-185 |
White and Yellow Terminals |
|
DCT4-187 |
.215 / .225 / .235 Hexes |
|
DCT4-188 |
.110 Hex |
|
DCT4-189 |
Comparable to MRP0478 |
|
DCT4-191 |
Comparable to Burndy MR8-9Q |
|
DCT4-192 |
Comparable to AMP 68064 |
