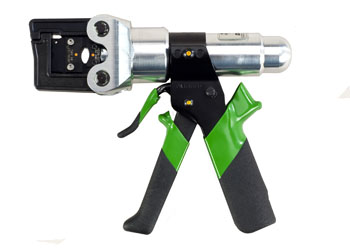

HD36, HDE36B & EHCD36工具系列模具

模具型号

“A” 压接高度

“A”
长度

“B” 压接高度

“B”
长度

类型/应用

HD36-101

.552 DIA.

.180

Single Cavity Circular
Corresponds To HUSKIE HD-58

HD36-102

.420 RAD.

.180

Single Cavity Circular
Corresponds To HUSKIE HD-34

HD36-103

.530 HEX

.365

Single Cavity Hex

HD36-104

.750 GAGE

.225

Single Cavity Hex,
Corresponds To HOMAC 840

HD36-105N

.198 HEX

.185

Single Cavity Hex

HD36-106N

.222 HEX

.185

Single Cavity Hex

HD36-107N

.280 HEX

.155

Single Cavity Hex

HD36-109

.520 GAGE

.340

Single Cavity Hex,
Corresponds To HOMAC 5/8

HD36-110N

.530 HEX

.344

Corresponds To T&B 683-53701-1

HD36-111N

.135 GAGE

.312

#8 Non-Insulated Single Indent

HD36-112N

.176 GAGE

.312

#6 Non-Insulated Single Indent

HD36-113N

.206 GAGE

.344

#4 Non-Insulated Single Indent

HD36-114N

.265 GAGE

.344

#2 Non-Insulated Single Indent

HD36-115N

.226 HEX

.110

.169

.110

Double Cavity Hex
Corresponds To PEN-011-2, & PEN-011-3

HD36-116N

.284 HEX

.110

.114

.110

Double Cavity Hex,
Corresponds To PEN-011-1, & PEN-011-4

HD36-124

.390 HEX

.344

Single Cavity Hex

HD36-125

.600 HEX

.344

Single Cavity Hex

HD36-126

.217 HEX

.344

Single Cavity Hex

HD36-128

.160 HEX

.344

Single Cavity Hex

HD36-130

.130 GAGE

.344

Single Indent for Flag Terminals

HD36-131

.446 HEX

.344

1/0 Non-Insulated Terminal Lug

HD36-132

.487 HEX

.344

2/0 Non-Insulated Terminal Lug

HD36-135

.110 HEX

.100

HDE36 GAGING DIE

HD36-136

.240 GAGE

.375

#6 Insulated (BLUE),
Corresponds To AMP 1490598-1

HD36-137

.272 GAGE

.375

#4 Insulated (YELLOW),
Corresponds To AMP 1490599-1

HD36-138

.176 GAGE

.202

.111

.202

Non-Insulated Single Indent

HD36-139

.204 GAGE

.250

#8 Insulated (RED),
Corresponds To AMP 1490597-1

HD36-142

.184 DIA.

.344

Single Cavity Circular
